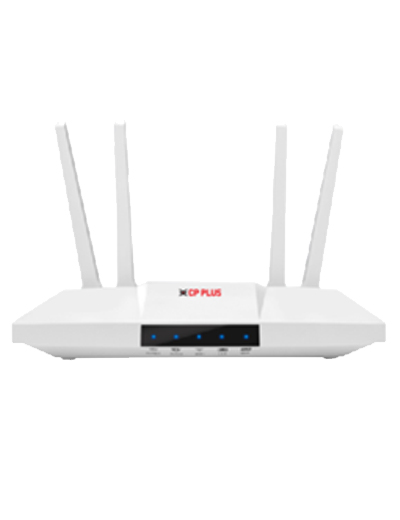

CP-XR-DE41-S
cp plus

CP-XR-DE41-S

4G Router

  • Compatible with WCDMA, FDD-LTE, TDD-LTE
  • Support Wi-Fi 2.4GHz
  • Support External antenna
  • Support Reset, WPS Button
Datasheet User Manual
Standard Compatible with WCDMA, FDD-LTE, TDD-LTE
Frequency LTE:B1/3/5/7/8/20/38/40/41 WCDMA:B1/5/8
Wi-Fi 2.4GHz, 802.11 b/g
Wi-Fi User 8
Wi-Fi Mode Station mode
4G Category LTE CAT 4
Max 4G Speed (DL/UL) 150Mbps/50Mbps, HSPA+ (DL/UL) 21/5.76Mbps
SIM Slot Micro SIM Card
SMS Support
IPv4/v6 Support
Data Statistics Support
SIM Lock Support
HTTP & DMZ Support
LED Power Indication LED, Online Indication LED, Wi-Fi Indication LED, LAN Interface Status LED, LAN Interface Status LED
Antenna External
Buttons Reset/WPS
Ethernet 1LAN, 10BaseT/100Base/ automatic adaptive port
Reset Button Pinhole
ESD Contact ±8KV , Air ±10KV
Power Voltage DC 12V/1A
Power Consumption <10W
Color White
Dimension 186mm x 106mm x 35mm (antenna folded) / 186mm x 106mm x 135mm (antenna unfolded)
Weight About 300g
Wi-Fi Security OPEN & WPA-PSK & WPA2-PSK
Operating Temperature -10°C to +65°C
Storage Temperature -20° C to +85° C
Humidity 5%~ 95
