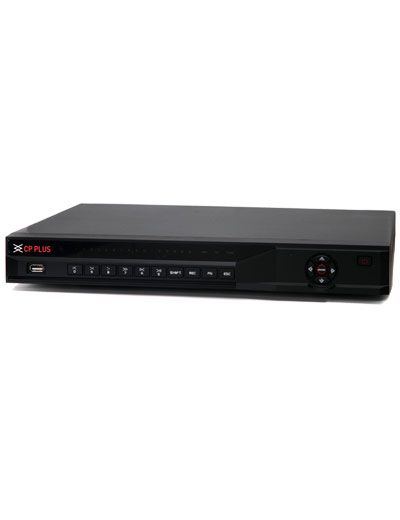

CP-UVR-3201K2-V4

 32 Ch. 1080P HD DVR

  • Auto Adaptive HDCVI/AHD/TVI/CVBS/IP signals
  • Support upto 5MP IP Camera
  • Max 128Mbps Incoming Bandwidth
  • H.264+ / H.264 dual-stream video compression
  • HDMI / VGA Simultaneous Video Output
  • Support 2 SATA HDD up to 16TB, 2 USB Ports
  • Mobile Software: iCMOB, gCMOB
  • CMS Software:KVMS, KVMS Pro
Datasheet User Manual

Processor Embedded processor
Operating System Embedded LINUX
IP Camera Input 32 Ch. : each channel up to 5MP
Two-way Talk Reuse audio in/out, RCA
User Interface GUI
Video Output 1 HDMI, 1 VGA, 1 TV
Video Resolution 1920×1080, 1280×1024, 1280×720, 1024x768
Video Recording Main stream: 4M-N/1080P(1~15fps), 1080N/720P/960H/D1/CIF (1~25/30fps) Sub stream: D1/CIF(1~15fps)
Video Display Split 1/4/8/9/16/25/36
Video Channel 32 channel, BNC
Audio Output 1 channel
Audio Channel 1 channel
Motion Detection MD Zones: 396 (22 × 18)
Video Loss Supports
Smart Phone iPhone, iPad, Android, Phone
Hard Disk 2 SATA port, up to 16TB
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Recording Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Backup Mode USB Device/Network
Playback Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Max User Account 128 users
Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Ethernet RJ-45 port (1000M)
Interface Ports 2 USB Ports (1USB 2.0, 1 USB 3.0), 1 RS485 Port
Protocols HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search, ONVIF 2.4.1, CGI Conformant
Power Supply DC12V/5A
Power Consumption <20W(without HDD)
Working Temp -10 ~+55°C / 10~90%RH
Dimension 375mm×287mm×53mm
Weight 2.35kg (without HDD)
