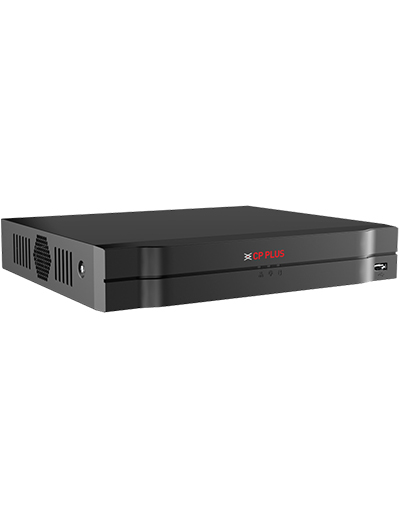

CP-UVR-1601E1-IC2

16Ch. 1080N Digital Video Recorder

  • Auto Adaptive HDCVI/AHD/TVI/CVBS/IP signals
  • Max 18 channels IP camera inputs, each channel up to 6MP
  • Max 64Mbps Incoming Bandwidth
  • Instastream/H.265 dual-stream Video Compression
  • Support 1 SATA HDD up to 16TB, 2 USB Ports
  • Up to 8 channels video stream (analog channel) SMD Plus
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro
Datasheet User Manual
Processor Industrial-grade processor
Operating System Embedded LINUX
IP Camera Input Up to 18 channels of IPC access 2 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled
Two-way Talk Support (share the same audio input with the first channel)
User Interface Web; GUI
SMD Plus by DVR 8-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Video Output 1 HDMI, 1 VGA, HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Video Input 16 channel, BNC
Encode Strategy AI Instastream/Instastream
Video Compression H.265/H.264+/H.264
Camera Input 1. CVI: 1080p@ 25/30 fps, 720p@ 25/30 fps 2. TVI: 1080p@ 25/30 fps, 720p@ 25/30 fps 3. AHD: 1080p@ 25/30 fps, 720p@ 25/30 fps 4. CVBS: PAL/NTSC
Video Display Split 1/4/8/9/16
Encoding Capacity Main Stream: the 1st channel 1080N/720p (1 fps–25/30 fps), others 1080N/720p (1 fps–15 fps); 960H/D1/CIF(1 fps–25/30 fps) Sub stream: CIF (1 fps–7 fps)
Bit Rate 32 kbps–6144 kbps
Audio Input 1 channel RCA 16-channel BNC (Coaxial Audio)
Audio Output 1 channel, RCA
Audio Compression G.711A, G.711U, PCM
General Alarm Motion detection, video loss, tampering
Anomaly Alarm No disk, disk error, low space, offline, ip conflict, MAC conflict
Alarm Linkage Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
Smart Phone iPhone, iPad, Android Phone
Hard Disk 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature
Audio Sample Rate 8KHz, 16 bit Per Channel
Playback 1/4/9/16 Ch.
Audio Bit Rate 64Kbps Per Channel
Recording Mode General, motion detection, alarm
Playback Mode Instant playback, general playback, event playback, tag playback
Backup Mode USB Device/Network
Interface Ports 2 USB Ports (2.0)
Network Mode Single-address mode
Ethernet 1 (10/100 Mbps Ethernet port, RJ-45)
Protocols HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; InstaOn Cloud, ONVIF 21.06; CGI Conformant
Power Supply DC12V/2A
Power Consumption <10W(without HDD)
Working Temp -10°C ~ +55°C (+14°F ~ +113°F), 0 ~ 90% RH
Dimension 260.0 mm × 231.4 mm × 47.6 mm
Weight 1.42 kg
