CP-UA-DSM1
cp plus

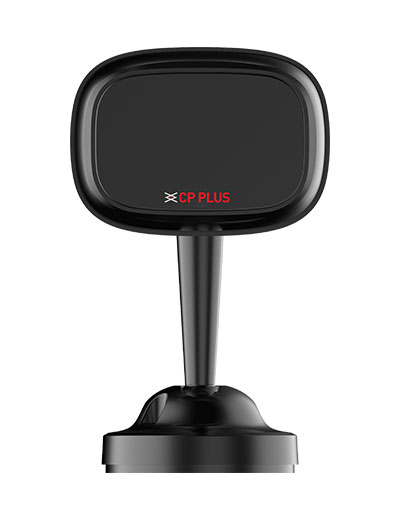

CP-UA-DSM1

Driver Monitoring Camera

  • 1/4" 1MP CMOS image sensor(0.635cm)
  • Max. Outputs 50 Hz(1280 × 720)@25fps, Max. Outputs 60 Hz (1280 × 720)@30fps
  • IR Range of 3m.
  • 2D/3D NR, BLC, HLC, AGC, IP54
  • 9 V–16 VDC
Datasheet
Image Sensor 1MP CMOS image sensor(0.635cm)
Effective Pixels 1280 (H) × 720 (V)
Minimum Illumination 0.1 lux
Shutter Speed NTSC: 1/30 s–1/10,000 s PAL: 1/25 s–1/10,000 s
Close Focus Distance 4 mm
Iris Fixed
Max Aperture F1.4
Gain Control (AGC) Auto
Back Light Compensation BLC,HLC
Angle of View H: 61.8°, V: 37.5°
Resolution 1MP(1280 × 720)
Video Streaming 50 Hz: 1280 × 720@25 fps 60 Hz: 1280 × 720@30 fps
Noise Reduction 2D/3D NR
IR Control Strobe
IR IR Range of 3Mtr.
No of IR LEDs 1 IR
Operating Temperature –30°C to +70°C (–22°F to +158°F)
Humidity < 90% (RH) (non-condensing)
Weatherproof Standard IP54
Power Source 9 V–16 V DC
Power Consumption < 2.5 W
Dimension 107.3 mm × 64.0 mm × 27.7 mm
Casing Cover: Plastic, Rear: Metal
Weight 191.6 g
